I-DA-H ROTARY ACTUATOR

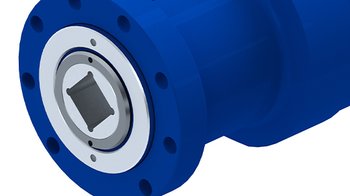

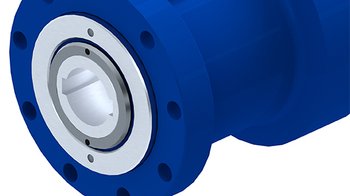

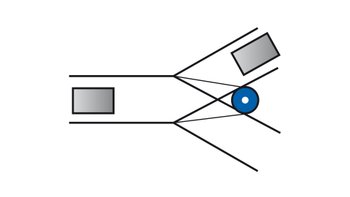

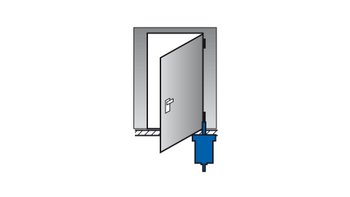

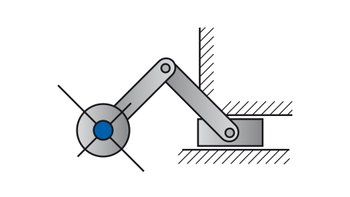

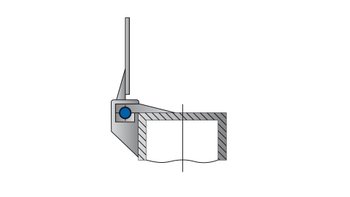

• Drive shaft with different Splined shafts profiles
• Drive shaft with second drive journal
• Design of the drive shaft and mounting flange according to customer requirements
• Angle of rotation adjustment over the entire swivel range
• Limit switch device
• Angle of rotation query
• All intermediate rotation angles are available
• Rotation range over 360
• Sea and seawater resistance
• Attachment bearing for high radial forces
• Change in direction of rotation
• Pneumatic design
• Aluminum housing
• In accordance with ATEX product directive
• Connections for servo interfaces possible
• Version for bio-oil or other pressurized fluids possible
• Other special designs possible

All sliding surfaces are surface-hardened

• Reduces wear
• Increases effectiveness

Rotary piston

• Rotary pistons can be run to their end stop positions and loaded
• No external end stops required

Rotation angle or end stop query possible via standard camshaft

• Precise positioning of rotation angle

Improved bearing efficiency with four-point bearing

• For handling strong radial and axial forces
• For greater longevity

Any intermediate rotation angle possible

• Customer-specific adaptation and integration in existing system

Angular adjustment as standard

• Exact final positioning
• ±4° Angular adjustment

Improved end position cushioning (as standard)

• Soft braking of mass moments of inertia
• Results in greater longevity for the entire system

State-of-the-art sealing technology

• Ensures less wear
• Longer service life for the entire system
• No internal leakage
• Increases safety
• Working pressure up to 250 bar
• Torque up to 100,000 Nm
• Standard rotation angles 90°, 180°, 270° and 360°
• Improved end position cushioning as standard
• Stepless adjustment of the shaft position
• Connection to all common fittings
• ATEX
